Hx40 6267mm turbine upgrade for 5.9 cummins

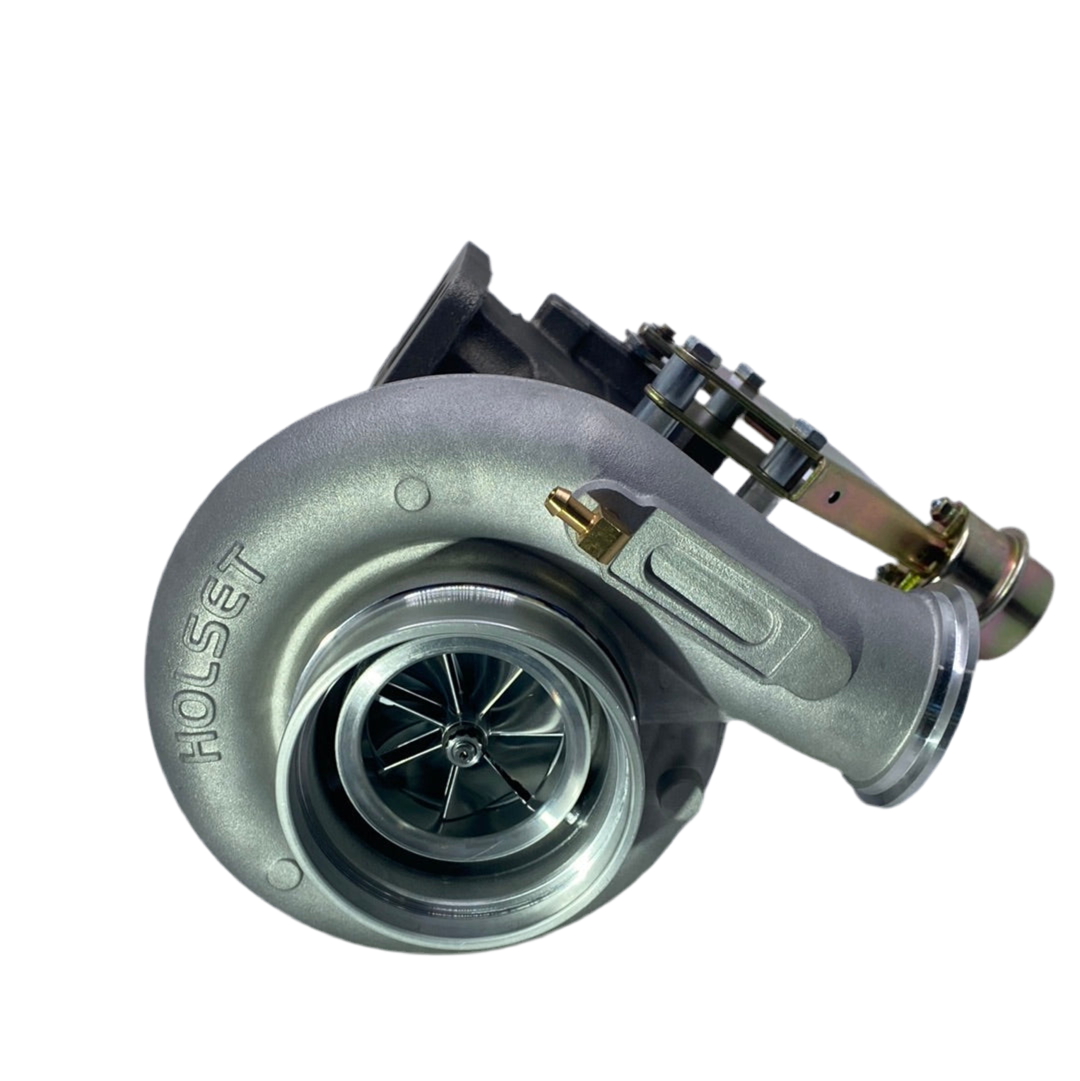

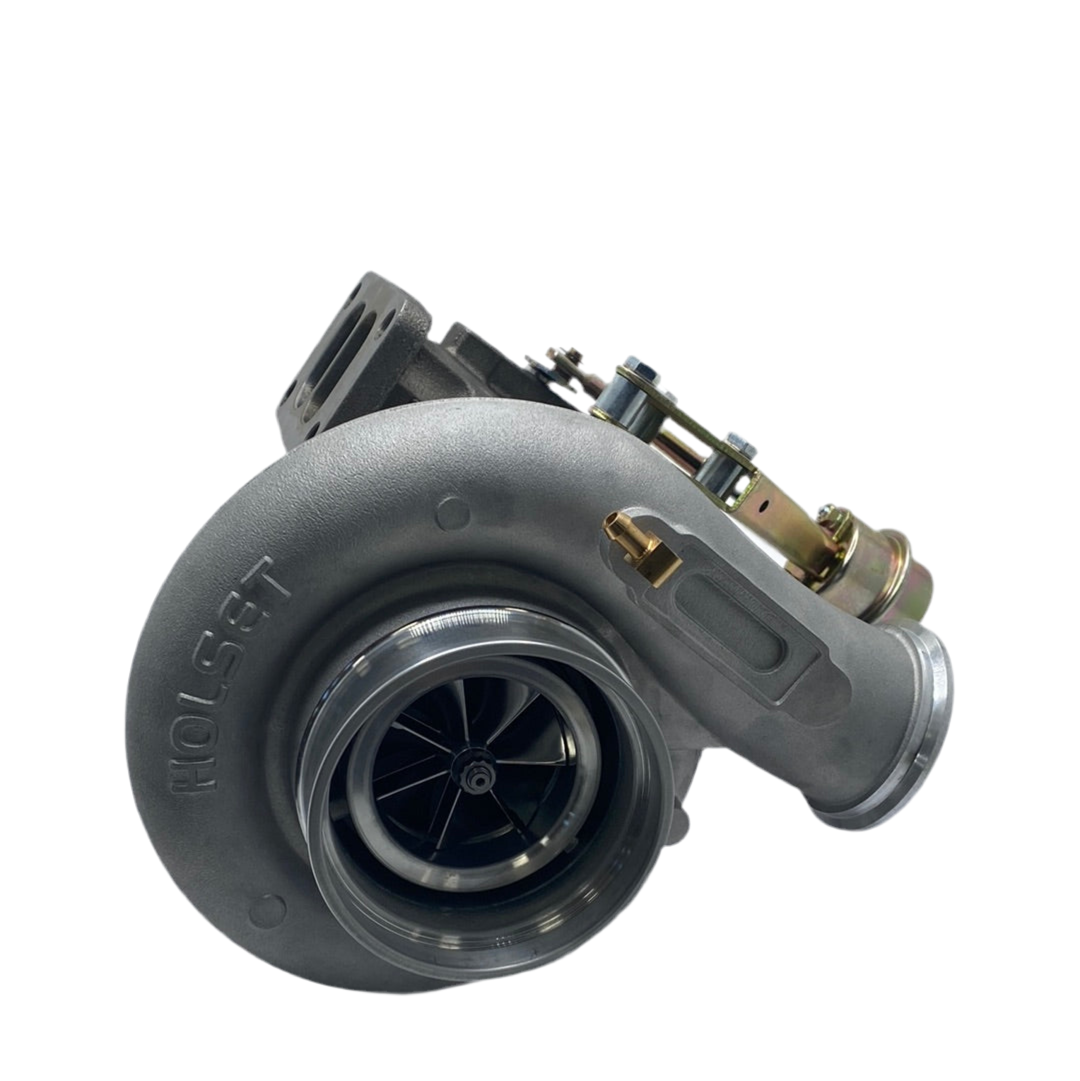

Holset HX40 6267mm complete turbo

Turbo Specs:

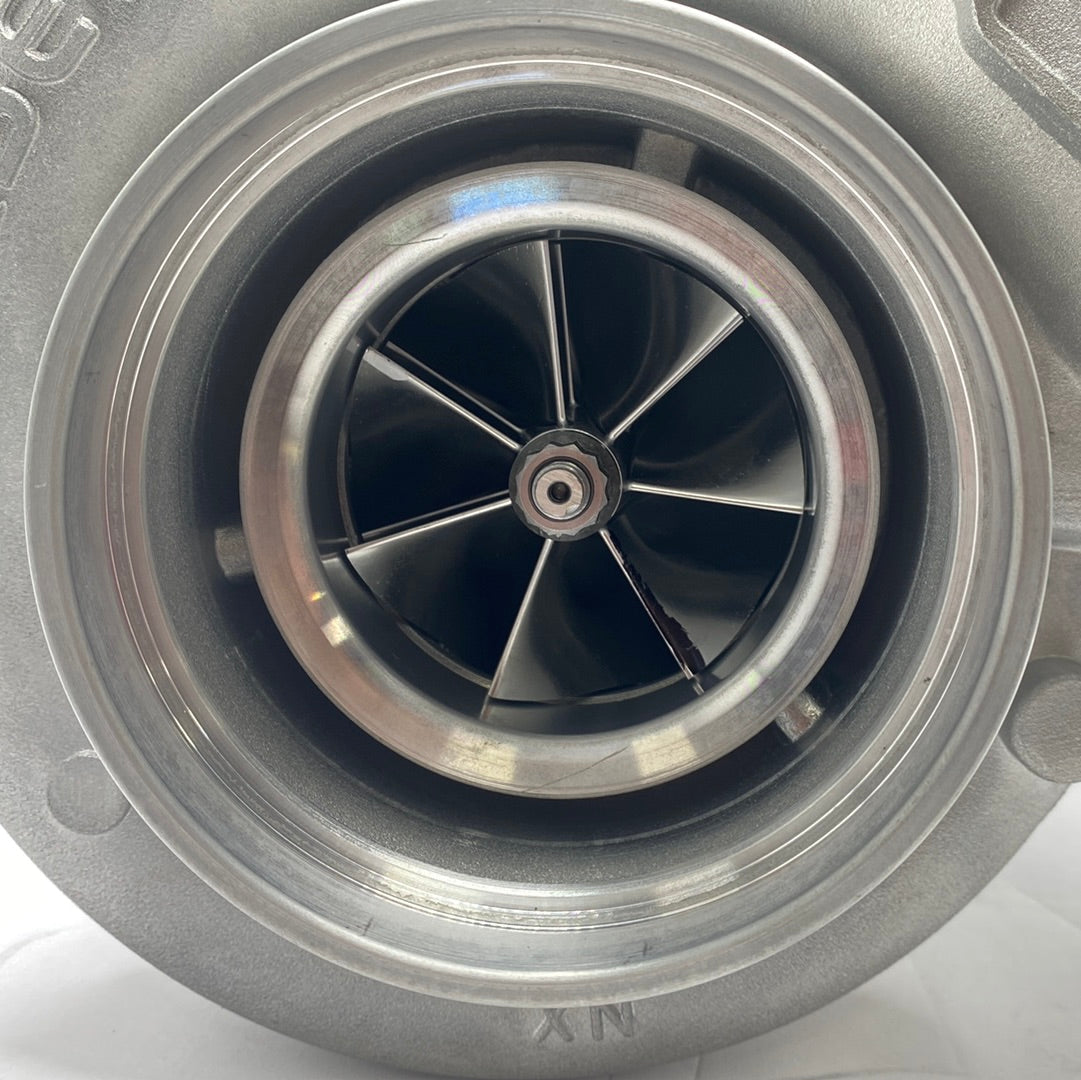

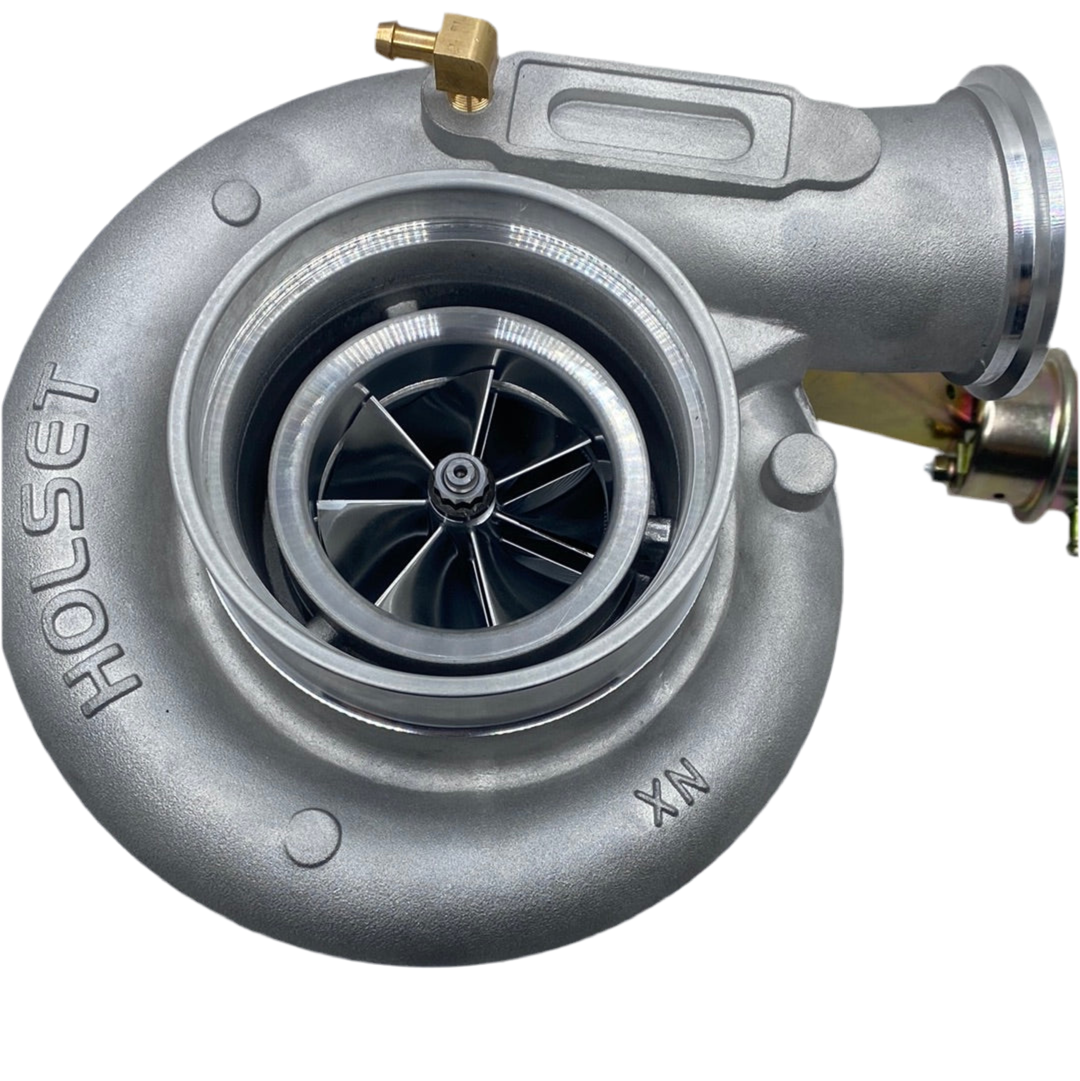

• 62.45mm x 86mm x 90mm billet compressor wheel

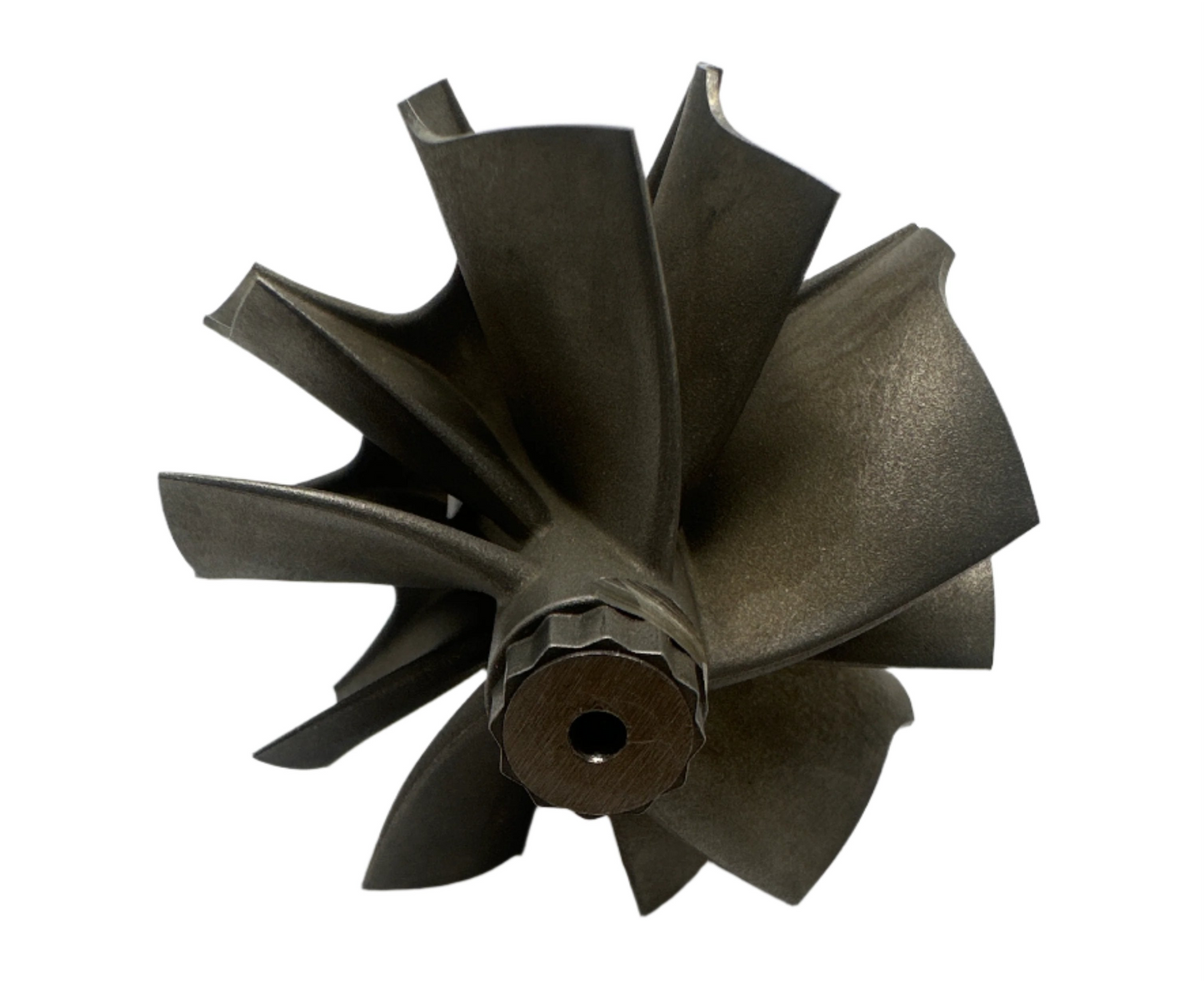

• 67mm x 76mm 10 blade turbine wheel (keeps egt lower and increased topend power for towing)
• Journal bearing turbo
• 600hp on a diesel engine.

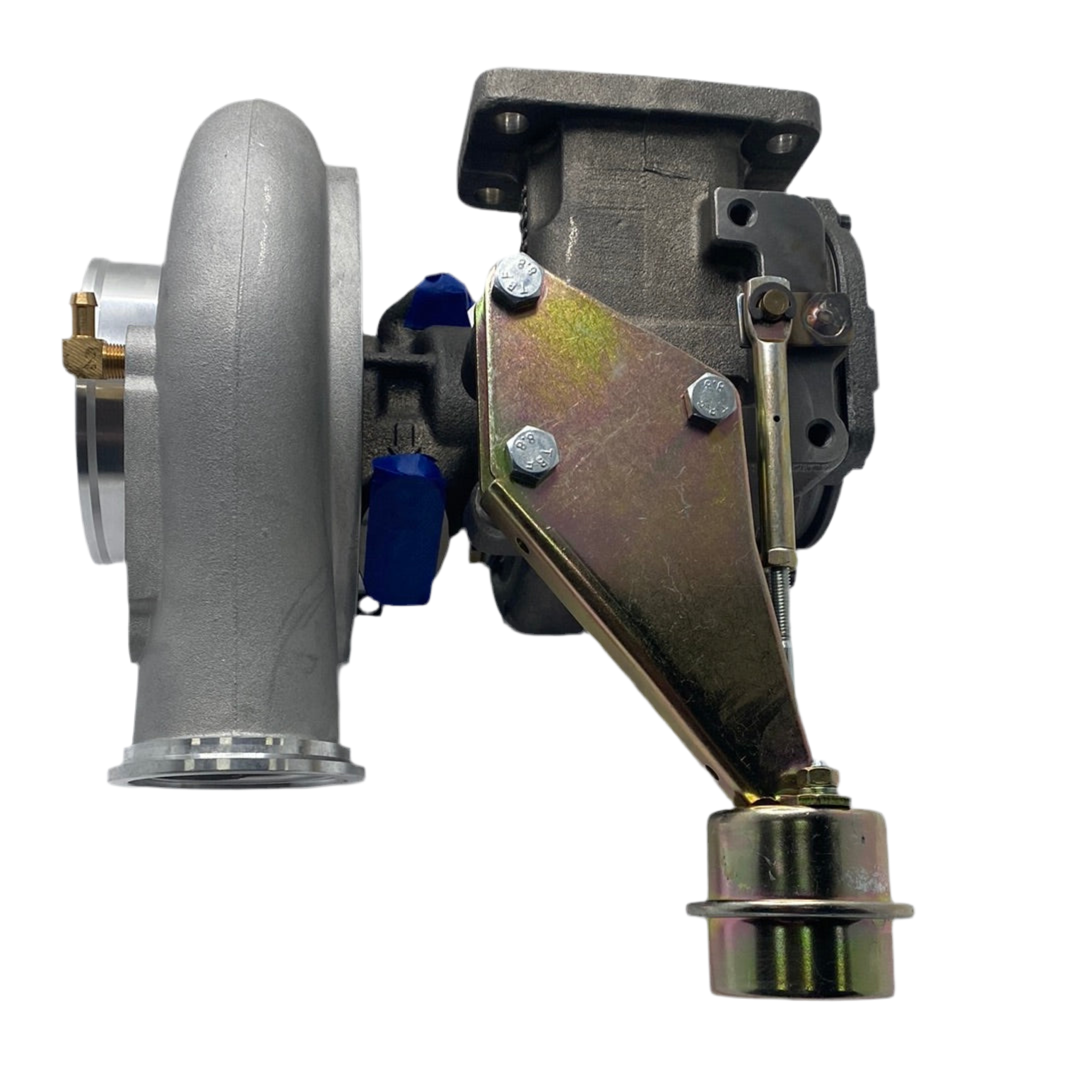

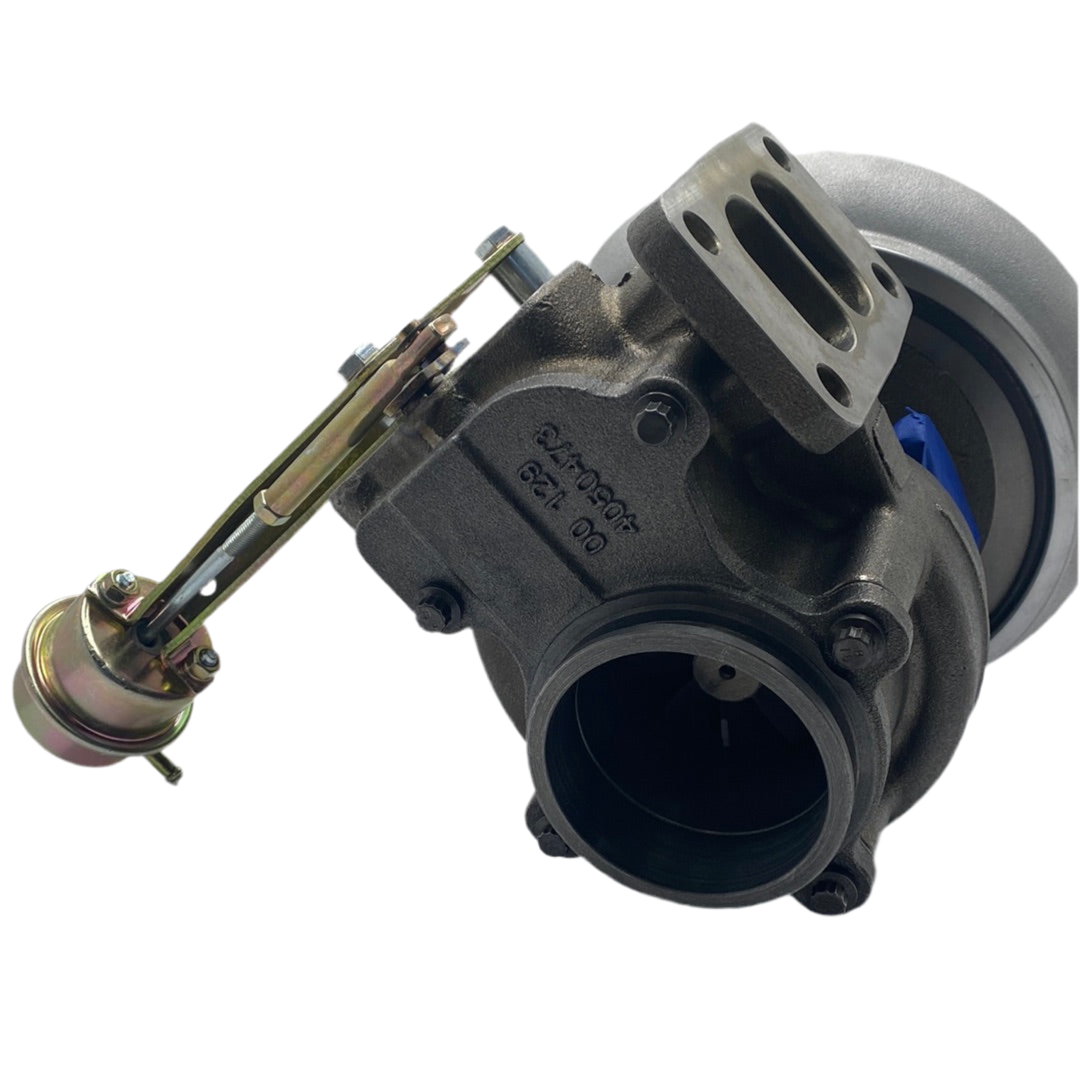

• 12cm T3 twin scroll wastegated turbine housing
• 22psi wastegate springs supports up to 35psi
• includes twin scroll manifold gasket oil drain gasket, oil feed o ring
• Comes with 5 bolts plate 2.5 inch v band outlet
• Direct fit upgrade for the 12v 5.9 Cummins.

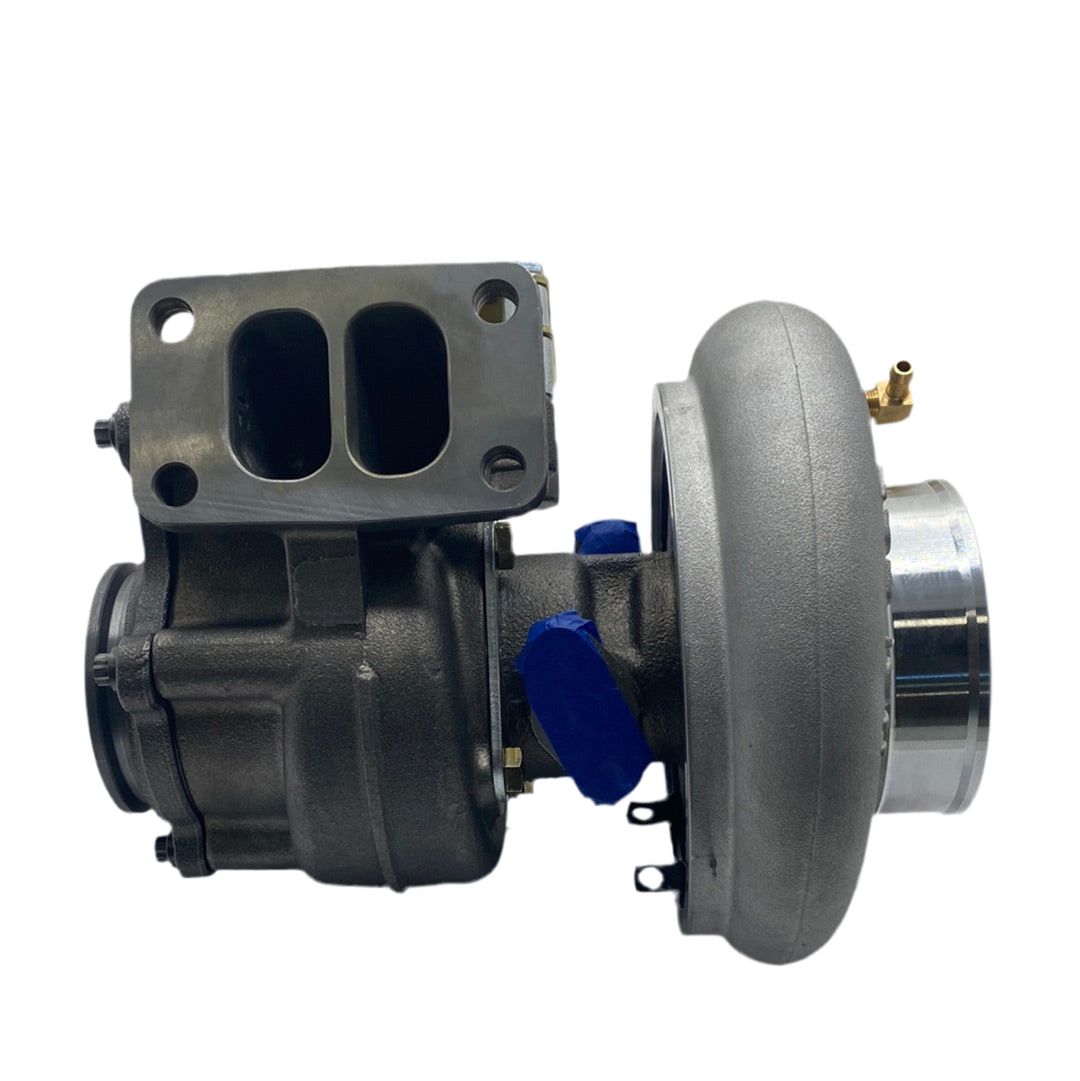

• T3 flange has 4 holes on turbine housing drilled for studs to go through.
• will fit 24v Cummins manifold if you helicoil m10 x1.5 on 2 of the turbine housing holes for studs or use bolt and nut
• Can be ran with factory injectors / 100hp to 150hp injectors are needed to see the maximum power of this turbo.
