HE351CW HY35 HE341 Turbo Rebuild Kit with Bearing Housing & V-Band Clamp

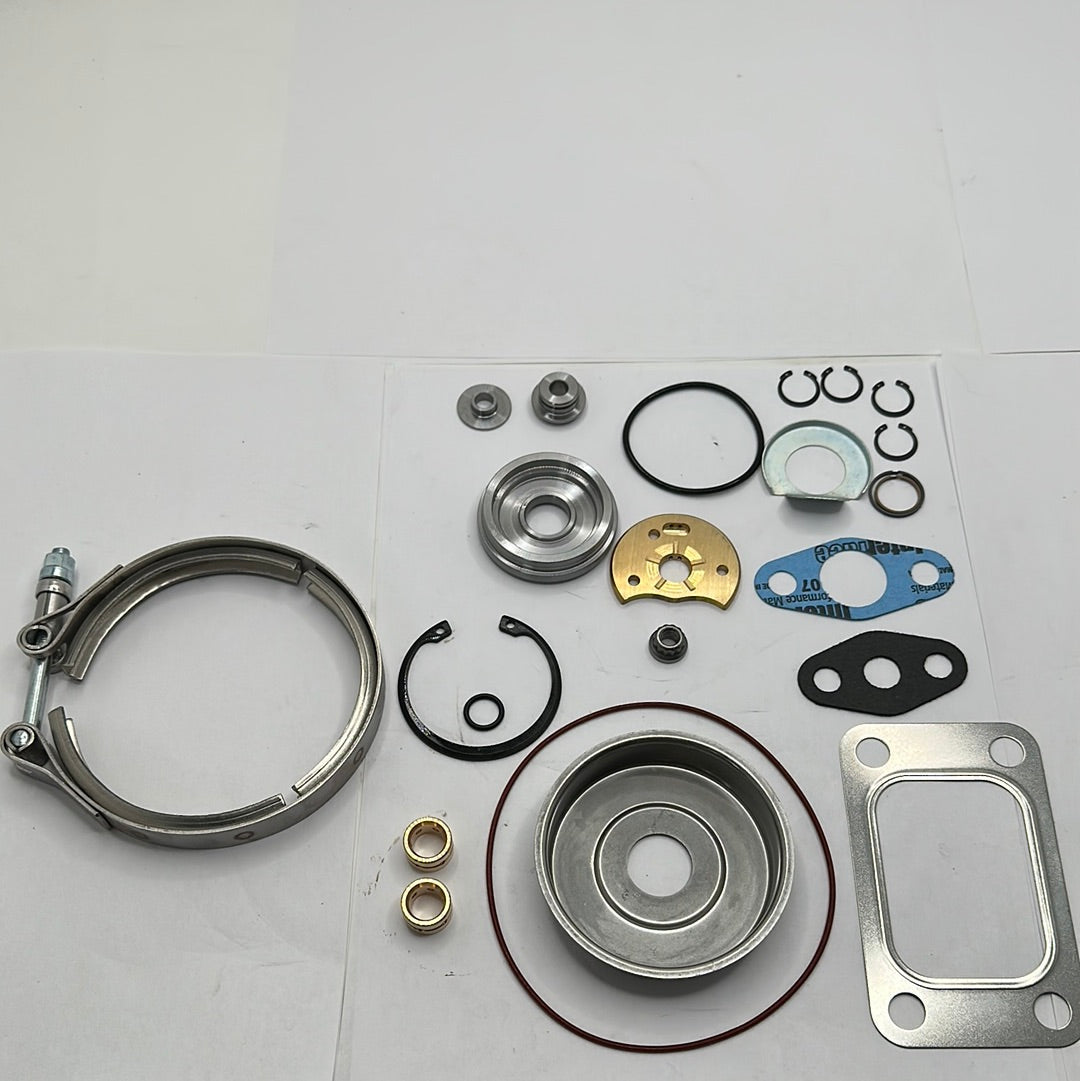

Kit Includes

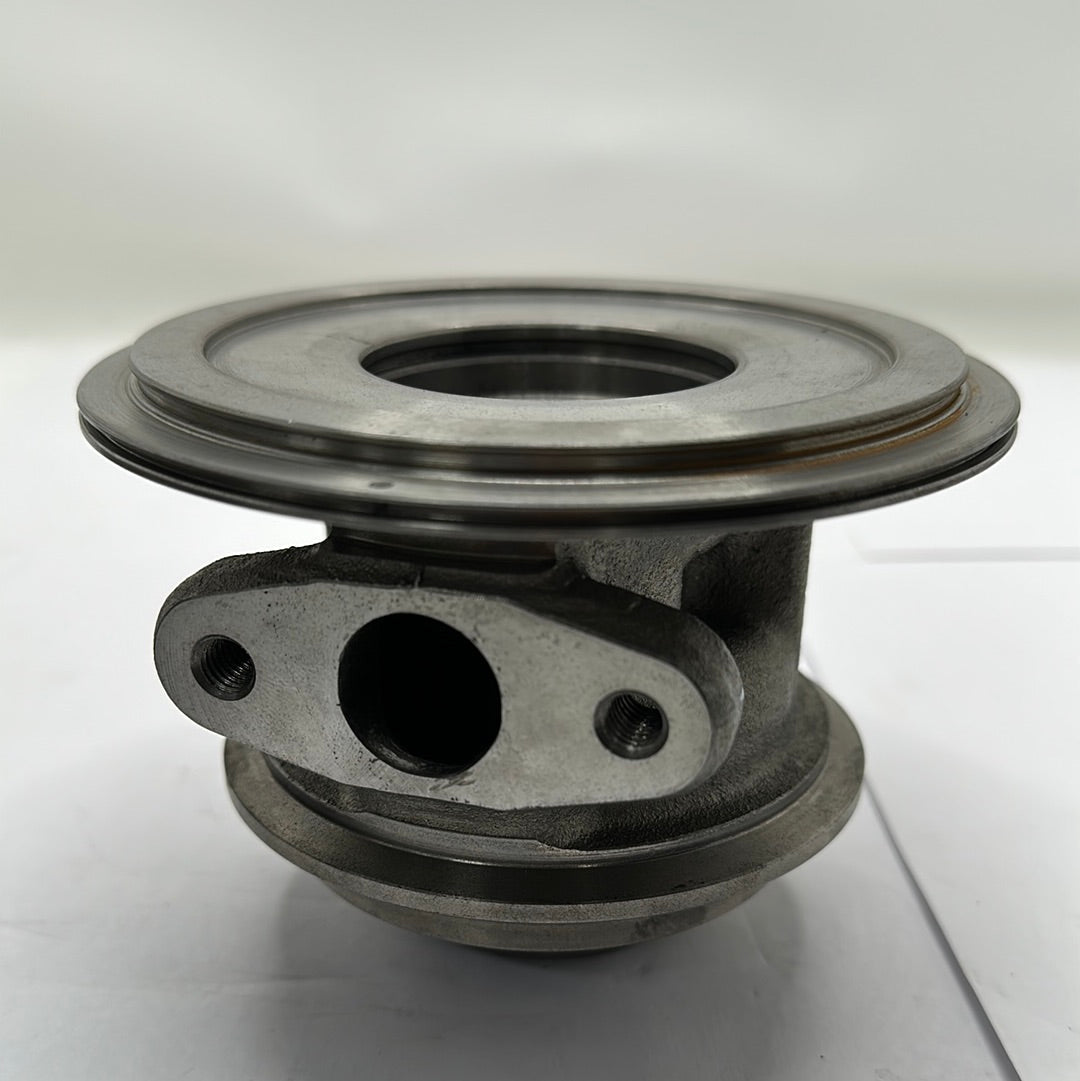

• New Bearing Housing
• Bearing Housing to Turbine Housing V-Band Clamp
• Upgraded Machined Copper Thrust Bearing
• (2) Journal Bearings
• (4) Journal Bearing Retaining Clips
• (1) Thrust Collar
• (1) Thrust Spacer
• (2) Piston Ring Seals (Front & Rear)
• (1) Front Seal Plate
• (1) Oil Deflector
• (1) Oil Feed Gasket
• (1) Oil Return Gasket
• (1) Front Seal Plate O-Ring
• (1) Compressor Housing O-Ring*
• (1) Rear Heat Shield

Features

• Premium-quality rebuild components
• Upgraded machined copper thrust bearing
• Improved oil flow compared to many aftermarket thrust bearings
• Heavy-duty bearing housing-to-turbine housing V-band clamp with stronger bolt
• Components used in our own performance turbocharger builds

Fitment

Compatible with:

• HE351CW
• HY35
• HE341

Not compatible with VGT turbochargers, including:

• HE341VE
• HE351VE
• HY40V

Installation Note

*The supplied compressor housing O-ring requires a bearing housing that has been machined for an O-ring seal. If your bearing housing has not been machined, modification may be required before installation.
